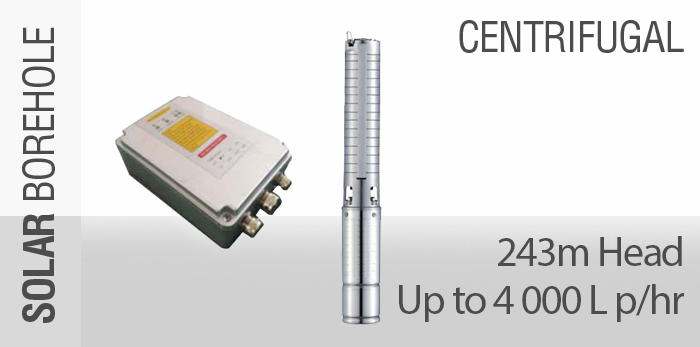

JCS4-4.0-243m Solar Borehole Pump 4.0 kW Off-Grid Water Pump
R29,900.00
The JCS4-4.0-243 solar borehole pump delivers efficient, sun-powered water for off-grid irrigation and rural use. Easy install, durable build, low maintenance.
Description
FEATURES
- 100% OFF GRID Solution
- NO Batteries or AC Required
- NO Timers required
- MPPT Controller
| Model | JCS4-4.0-243 |
| Voltage | 288 V |
| Power | 2200 Watts |
| Max Flow Rate | 4.0 m³/h |
| Max Head | 243 m |
| Warranty | 12 Months |
| AVAILABILITY: | In Stock |
GENERAL DATA
| Outlet | 32mm (1.25 in) |
| Pump Diameter | 100 mm |
| Type of Pump | Centrifugal Pump |
| Submersible Depth | 30 m |
| Controller Input Voltage | 324V – 450 (VoC) |
| What’s Included | Pump, Controller, Float Level Switches and 6m Cable |
PACKED DIMENSIONSÂ
| Length | 800 mm |
| Width | 310 mm |
| Height | 150 mm |
| Weight | 19 kgs |
SOLAR PANEL REQUIREMENTS Â
| PANELS | VOLTAGE (VMP) | QTY |
| 340 Watts | 38.14V | 18 |
| 400 Watts | 41V |
* PLEASE NOTE: Exceeding the Input Voltage (48) to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.
FAQ
Does the price include installation?
No, the price doesn’t include installation. Installations are all different and require varying length of cable, time and distances to be travelled. In addition to this installations need to be done by a qualified electrician to issue a valid Certificate of Compliance (COC) for your insurance. We will gladly recommend a qualified local installer, please ask your Sales Consultant for more information.
Special Installation Instructions
When installing your solar borehole pump it is important to note the following things:
- – Do not exceed the controllers input voltage and wattage. This will cause damage to the controller and void your warranty.
- – Do not install in an enclosure as this will restrict the cooling of the controller.
- – Do not restrict air-flow to the controller.
- – Ensure that the correct cable size is used for the length of cable required.
Do we offer installation?
Yes, in Gauteng only. Outside of Gauteng we can recommend the closest installer to you.
Does the price include delivery?
All prices exclude delivery. We will gladly get a price on delivery for you.
Does the price include the Solar Panels?
No, solar panels are sold separately from the pump kits.
Tell me about the Warranty?
The warranty
The warranty is 12 Months. It is a limited warranty. Travel to site is not included in the warranty. The goods need to be returned to us or a call out will be charged. Please refer to the Terms and Conditions of sale and the Warranty Card for further information on the warranty. Warranty is held with the agency where you bought the products. If you have purchased your products in Johannesburg then the warranty is held in Johannesburg etc.
 the Warranty?
Price Validity
Pricing is valid whilst stock lasts and is subject to change without prior notice. Pricing on the website is indicative and should always be confirmed by Bundu Power in the form of a written quotation
Additional information
| Weight | 19 kg |
|---|---|
| Dimensions | 80 × 31 × 15 cm |
