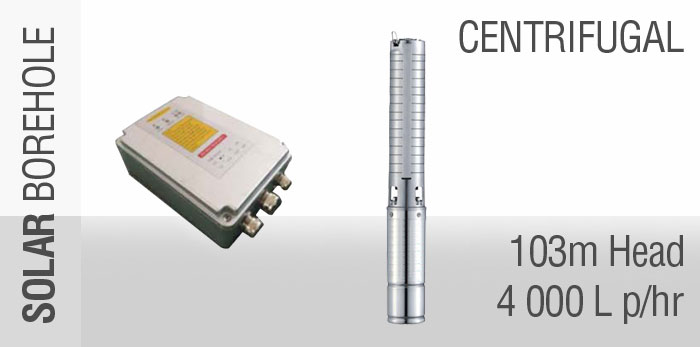

JCS4-4.0-103m Solar Borehole Pump
R15,000.00
Designed for deep borehole efficiency, the JCS4-4.0-103m solar pump delivers strong hydraulic performance and dependable water extraction up to 103 meters. Built for resilience in off-grid settings, it seamlessly integrates with solar power systems to provide sustainable water supply for farming, livestock, and rural infrastructure. Precision engineering and low maintenance needs make it a long-term…
Description
FEATURES
- 100% OFF GRID Solution
- NO Batteries or AC Required
- NO Timers required
- MPPT Controller
- * Optional AC Power Supply
| Model | JCS4-4.0-103 |
| Voltage | 48 V |
| Power | 750 Watts |
| Max Flow Rate | 4.0 m³/h |
| Max Head | 103 m |
| Warranty | 12 Months |
| AVAILABILITY: | In Stock |
GENERAL DATA
| Outlet | 32mm (1.25 in) |
| Pump Diameter | 100 mm |
| Type of Pump | Centrifugal Pump |
| Submersible Depth | 30 m |
| Controller Input Voltage | 48V – 100V (VoC) |
| What’s Included | Pump, Controller, Float Level Switches and 6m Cable |
PACKED DIMENSIONSÂ
| Length | 610 mm |
| Width | 300 mm |
| Height | 200 mm |
| Weight | 16 kgs |
SOLAR PANEL REQUIREMENTS Â
| PANELS | VOLTAGE (VMP) | QTY |
| 340 Watts | 38.14V | 4 |
| 400 Watts | 41V |
Additional information
| Weight | 16 kg |
|---|---|
| Dimensions | 61 × 30 × 20 cm |
You must be logged in to post a review.
Related Products
-
JCS4-4.0-166m Solar Borehole Pump
R25,500.00 -
JCS4-4.0-134m Solar Borehole Pump
R17,000.00 -

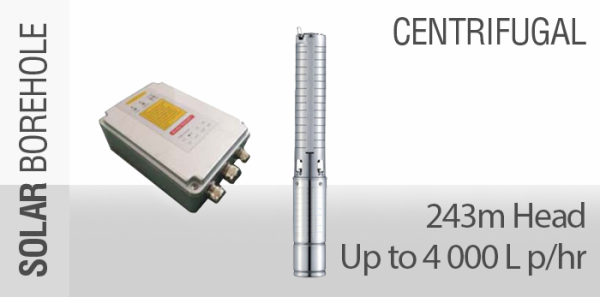

JCS4-4.0-243m Solar Borehole Pump 4.0 kW Off-Grid Water Pump
